Indirect Measurement and Similar Right Triangles Lab

Indirect Measurement and Similar Right Triangles Lab

Overview

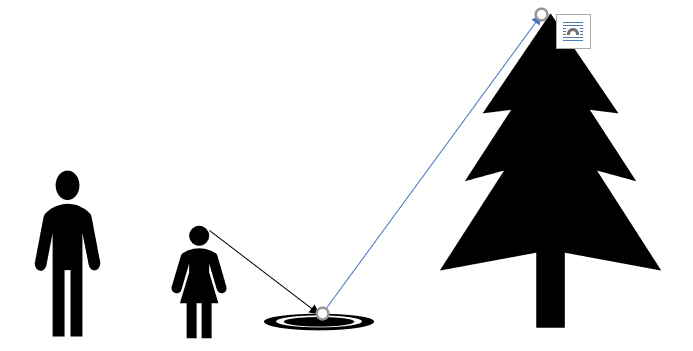

On a hike with her children, Mrs. Thompson noticed the reflection of the top of a pine tree in a puddle in the path. Her son, who is almost a foot taller than she is, could not see the top of the tree in the puddle until he moved. Why did her son need to move to see the top of the tree? How can they use similar right triangles and indirect measurements to find the height of the tree?

Using Similar Right Triangles and Indirect Measurement in real world settings.



Title: Indirect Measurement and Similar Right Triangles Lab



Section Name = Short Lesson Overview 1 sentence (Not to exceed 250 words)
  1. On a hike with her children, Mrs. Thompson noticed the reflection of the top of a pine tree in a puddle in the path. Her son, who is almost a foot taller than she is, could not see the top of the tree in the puddle until he moved. Why did her son need to move to see the top of the tree? How can they use similar right triangles and indirect measurement to find the height of the tree?



Attach Section Resources/Links: Any worksheets, presentations, illustrations, assessments or activities. (Preferably in PDF)

Data Recording Sheet: https://docs.google.com/document/d/1ALOVlIFgnPwSPh3orSAOxhVh9lrpVaM9wz7DYGVoIHY/edit?usp=sharing



Bell Ringer: https://docs.google.com/document/d/19SWTlDufw6xkF4-_PYtgUP9XCD-6EGHZeMHqoC5d0aM/edit?usp=sharing



Rubric: https://drive.google.com/file/d/0BxV1LO6iHp1yZmRuV1JVbGIxT1k/edit




Main Content Section  (Visible in Student View) (In Bee lesson example, it was left blank)






Add to Instructor’s Notes:



Timeframe: 60-90 minutes



Stage 1 - Desired Results

Big Idea(s)& Essential Questions
Big Ideas: On a hike with her children, Mrs. Thompson noticed the reflection of the top of a pine tree in a puddle in the path. Her son, who is almost a foot taller than she is, could not see the top of the tree in the puddle until he moved. Why did her son need to move to see the top of the tree?
Essential Questions:
  • How do I plan and conduct a simple investigation?
  • How do I decide to change my plan of action (cause-effect relationship)?



Students Will KnowStudents Will Be Doing
  • Content specific vocab
  • Tech Ed
  • Science
  • Math
  • Computer Science
  • Career Ed
  • Steps of design process
  • Creating and solving proportions to find the height of an elevated object.
  • Converting measurements
  • Creating and revising blueprints



Stage 2 - Evidence of Understanding

Assessments (Formative and Summative):Performance Task(s)
  • Informal Formative Assessments throughout unit (i.e. classroom observations, questioning)
  • Formal assessments on:
  • Individual Course Summative Assessments
  • Create and revise blueprints
  • Calculate the height of an elevated object using indirect measurement.



Stage 3 - Lesson Learning Targets

Learning Activities: Learning targets are written from the students perspective. I can…
  • Work through the Engineering Design process by identifying and applying key components in the process.
  • Create a blueprint to identify materials and measurements necessary to see the elevated object.
  • Describe and analyze data from completing an experiment.
  • Solve problems and make adjustments to my blueprints to improve the overall design.
  • Convert measurements to create a simpler problem (inches to feet)
These should lead up to answering the Essential Question(s).
  • I can….





Lesson Procedures:
MaterialsActivitiesPresentationsAssessments
Bell ringer::Classroom Materials
  • Work through Bell Ringer with students to frame the premise of the problem. https://docs.google.com/document/d/19SWTlDufw6xkF4-_PYtgUP9XCD-6EGHZeMHqoC5d0aM/edit?usp=sharing
  • Present the materials to the students with descriptions of what they will be using when they develop their plan for the blueprint to solve for the height of the elevated object. Divide students into groups of 3 or 4. Students should create individual blueprints to present to the other members of their team based on their own individual height. Team members will discuss the pros and cons of each sketch and then combine their blueprints into the final product.
Procedures:1.     Review the Engineering by Design Process2.    Introduce the Problem: On a hike with her children, Mrs. Thompson noticed the reflection of the top of a pine tree in a puddle in the path. Her son, who is almost a foot taller than she is, could not see the top of the tree in the puddle until he moved. Why did her son need to move to see the top of the tree?   Problem: Create a blueprint including each group member’s height to use proportions and indirect measurement protocols to find the height of an elevated object.3.  Present and display the materials to the students to identify these materials.  Divide the students into groups of 3-4. Provide independent time for each individual student to develop his/her brief to present to the other members of the group as well as choose an elevated object and take preliminary measurements. Groups will discuss the pros and cons of each brief and then create their blueprint. 4. Each group will verify measurements and then calculate the height of the elevated object. TEACHER NOTE: Students should be allowed to adjust and remeasure as necessary.5.    Groups will work on their calculations and record their observations. Recordable data could include: student height, student distance from the mirror, distance from the mirror to the bottom or a point underneath the elevated object. 6. Groups will analyze their results and determine the cause of what they observed. Students will then make adjustments to their blueprint based on their actual findings using colored pencils for evidence of adjustments. All group members must approve of the changes. 7. Groups will present their overall findings to the class. Discussion points should include: What adjustments were made to the blueprint and why? Identify some of the differences in the initial blueprint and the final. Pros and Cons for specific design elements. Did certain design features matter? Did the adjustments make sense? Identify any design flaws that you would make adjustments to in the future.
  •  Groups will present their overall findings to the class through a PowerPoint or Google Slides. Discussion points should include: Which design elements needed adjusted on the blueprint? Identify some of the differences in the different blueprints. Pros and Cons for specific design elements. Did certain design features matter? Did the adjustments work? Identify any design flaws that you would make adjustments to in the future.








Publish- Describes the resource before final publication




Describe

Help others find your resource by choosing the appropriate options in each field.  Clicking inside each field will show you all the options.

1. In the Overview box, provide an overview of the topic.

2. In the Conditions of Use dropdown, select how you would like your work to be used. Each option has a written description to help you understand the difference between the options.

3. If desired, add a Preview Image. This is the thumbnail image that will show up in the search results page on the site.

4.Complete the remaining required fields, and non-required fields if applicable.  Subject, Education Level, Material type, Languages, Educational Standards (PA is in drop-down to choose), <edai Formats, Educational Use, Primary User, Accessibility, Keyword Tags (when searched)

5. The last thing before publishing is to acknowledge if you have the right to use and share all images, videos and other content inside this resource with the original creator's consent.

6. Click Publish. Your resource is now searchable and sharable!
